SDR TRX 40M Band 5Watt

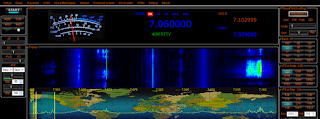

Software Define Radio is a radio that most of her control is done by software, while hardware serves as a front end alone in this system.

This time I will try to assemble a simple SDR Radio with power 5watt, and of course a lowcost. The components used are very easily available and is still using DIP type, if you use SMD components amateur friends many do not want. especially those who are beginners.

Schematic
PCB LAYOUT

Pcb sudah jadi cetak dengan metode transfer paper
